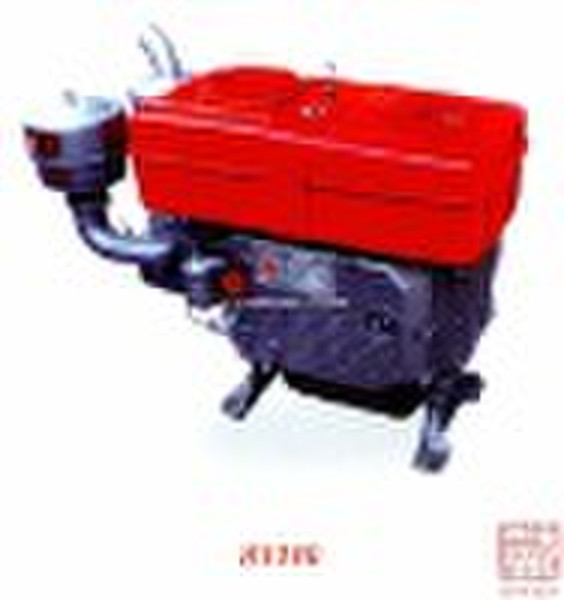

Diesel Engine S1110 series

Cast iron pump housing for long lifeWidely used in such fields as the agricultural irrigation, tractor, light-duty truck, agricultural transport vehicle, combined harvester, engineering machine, generate set, marin power, etc.Comprehesive line of models with “Plain Type”, “Plateau Type”, or“Mine Type”Taking up the global gauntlet for expensive oil price, oil consumption sudden dropped 5%Small volume, light weight, low fuel consumption, flexibility in starting and good reliability, etc.Specification of Diesel Engine S1110 Series ItemS1110S1110NS1110MS1110NMS1110WPTypeSingler-cylinder Horizontal Water-cooled Four-cycle Singler-cylinder Horizontal Water-cooled Four-cycle Singler-cylinder Horizontal Water-cooled Four-cycle Singler-cylinder Horizontal Water-cooled Four-cycle Singler-cylinder Horizontal Water-cooled Four-cycle Combustion ModelDirect-Injection Direct-Injection Direct-Injection Direct-Injection Direct-Injection Cylinder Diameter110 mm 110 mm 110 mm 110 mm 110 mm Piston Stroke115 mm 115 mm 115 mm 115 mm 115 mm Nominal Speed2200 r/min 2200 r/min 2200 r/min 2200 r/min 2200 r/min Max Rating Output14.7 kw 14.7 kw 14.7 kw 14.7 kw 14.7 kw Nominal Power13.24 kw 13.24 kw 13.24 kw 13.24 kw 13.24 kw Instantancous SpeedRegulating Rate≤12% ≤12% ≤12% ≤12% ≤12% Stable Speed Regulating Rate≤8% ≤8% ≤8% ≤8% ≤8% Staring ModeHand Starting Hand Starting Hand Starting or Electricity Starting Hand Starting or Electricity Starting Hand Starting Net Weight≤180 kg ≤185 kg ≤195 kg ≤195 kg ≤195 kg Overall Dimensions858x450x699 (mm) 858x450x699 (mm) 970x463x699 (mm) 970x463x699 (mm) 858x450x699 (mm)
