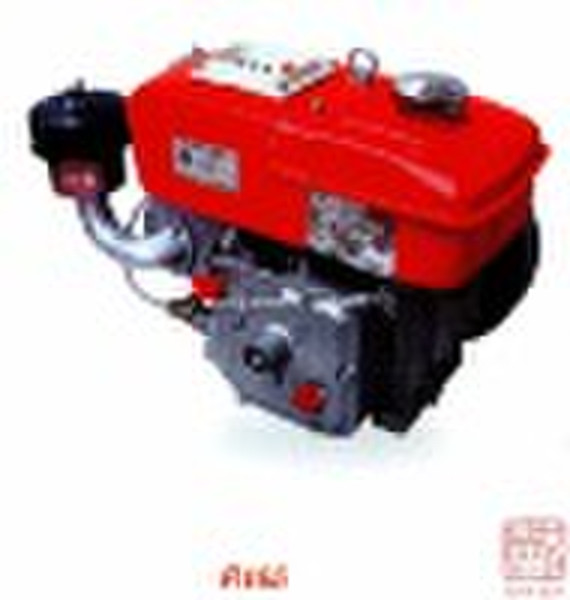

Diesel Engine 160-R180 series

Cast iron pump housing for long lifeWidely used in such fields as the agricultural irrigation, tractor, light-duty truck, agricultural transport vehicle, combined harvester, engineering machine, generate set, marin power, etc.Comprehesive line of models with “Plain Type”, “Plateau Type”, or“Mine Type”Taking up the global gauntlet for expensive oil price, oil consumption sudden dropped 5%Small volume, light weight, low fuel consumption, flexibility in starting and good reliability, etc.Specification of Diesel Engine160F 165F R165 Item160F165FR165TypeSingler-cylinder 45°inclined cylinde Air-cooled Four-cycle Singler-cylinder 45°inclined cylinde Air-cooled Four-cycle Singler-cylinder 45°inclined cylinde Air-cooled Four-cycle Combustion ModelSwirl type Swirl type Swirl type Cylinder Diameter60 mm 60 mm 65 mm Piston Stroke65 mm 65 mm 65 mm Nominal Speed2600 r/min 2600 r/min 2800 r/min Max Rating Output1.62 kw 2.02 kw 2.75 kw Nominal Power1.47 kw 1.84 kw 1.5 kw Instantancous SpeedRegulating Rate≤12% ≤12% ≤12% Stable Speed Regulating Rate≤8% ≤8% ≤8% Staring ModeHand Starting Hand Starting Hand Starting Net Weight24 kg 27 kg 29 kg Overall Dimensions319x364x410 (mm) 319x364x410 (mm) 435x245x332 (mm) ItemR170R175AR175ANR175ANMR180R180NTypeSingler-cylinder, Horizontal, Water-cooled, Four-cycle Singler-cylinder, Horizontal, Water-cooled, Four-cycle Singler-cylinder, Horizontal, Water-cooled, Four-cycle Singler-cylinder, Horizontal, Water-cooled, Four-cycle Singler-cylinder, Horizontal, Water-cooled, Four-cycle Singler-cylinder, Horizontal, Water-cooled, Four-cycle Combustion ModelSwirl type Swirl type Swirl type Swirl type Swirl type Swirl type Cylinder Diameter70 mm 75 mm 75 mm 75 mm 80 mm 80 mm Piston Stroke65 mm 80 mm 80 mm 80 mm 80 mm 80 mm Nominal Speed2800 r/min 2600 r/min 2600 r/min 2600 r/min 2600 r/min 2600 r/min Max Rating Output3.3 kw 4.84 kw 4.84 kw 4.84 kw 5.67 kw 5.67 kw Nominal Power3.0 kw 4.4 kw 4.4 kw 4.4 kw 5.15 kw 5.15 kw Instantancous SpeedRegulating Rate≤12% ≤12% ≤12% ≤12% ≤12% ≤12% Stable Speed Regulating Rate≤8% ≤8% ≤8% ≤8% ≤8% ≤8% Staring ModeHand Starting or Electricity Starting Hand Starting Hand Starting Hand Starting or Electricity Starting Hand Starting Hand Starting Net Weight31 kg 60 kg 65 kg 65 kg ≤72 kg ≤72 kg Overall Dimensions435x245x332 (mm) 589x341.5x463 (mm) 589x341.5x463 (mm) 589x341.5x463 (mm) 625x341x463 (mm) 625x341x463 (mm)
